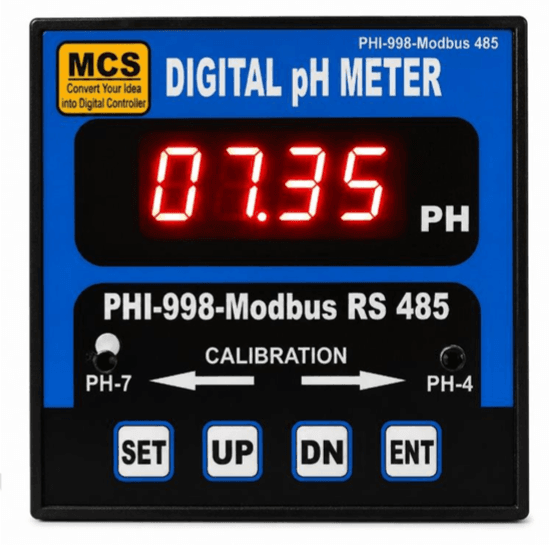

Modbus 485 pH Meter OnlineModbus 485 pH Meter Online is an industrial online pH measuring instrument used for continuous pH monitoring in RO plants, ETP/STP plants, chemical dosing systems, process water, effluent water, cooling water and industrial automation panels. It measures the acidity or alkalinity of liquid and communicates the pH value through RS485 Modbus RTU for PLC, HMI, SCADA, data logger and remote monitoring systems.UMA Industries supplies online pH meters, RS485 Modbus pH meters, pH controllers, pH sensors, pH electrodes, water-quality instruments and customized automation devices for industrial applications. The Modbus 485 pH Meter Online is suitable where continuous digital pH indication and communication output are required in a control panel or automation system.This instrument is useful for industries that want to monitor pH value digitally and transfer readings to a PLC, HMI, SCADA dashboard, IoT gateway or central monitoring system using Modbus RTU communication. Technical Specifications of Modbus 485 pH Meter OnlineProduct Name: Modbus 485 pH Meter OnlineMeasurement Parameter: pHMeasurement Range: 0.00 to 14.00 pHResolution: 0.01 pHDisplay: Digital LED displayCommunication: RS485 Modbus RTUSensor Input: pH electrode / pH sensor with suitable connectorCalibration: Two-point calibration using 4.00 pH and 7.00 pH buffer solutionsMounting: Panel-mounted online typePanel Size: 96 x 96 mm standard panel mounting, model dependentPower Supply: 220–230 VAC, 50 Hz, or as per model designOptional Output: Relay, 4-20 mA or 0-10 VDC as per requirementApplication: RO, ETP, STP, chemical dosing, process water and industrial automationWhat is Modbus 485 pH Meter Online?Modbus 485 pH Meter Online is a digital pH meter with RS485 communication. It continuously reads pH value from a pH sensor installed in a tank, pipeline, flow cell or sample chamber. The instrument displays pH value locally and also sends digital data to an automation system through Modbus RTU protocol.In industrial plants, normal pH meters display the value locally. A Modbus 485 pH meter provides an additional communication advantage because the same pH value can be read by PLC, HMI, SCADA or remote monitoring software. This makes the instrument suitable for modern water-treatment automation and process monitoring systems.Why RS485 Modbus RTU is Useful in pH MeasurementRS485 Modbus RTU is widely used in industrial automation because it allows digital communication between field instruments and control systems. A Modbus 485 pH Meter Online can send pH reading to a master device such as PLC, HMI, SCADA system, data logger or IoT gateway.Compared with only analog signals, Modbus communication is useful when multiple instruments need to be connected on the same communication line. pH meter, TDS meter, ORP meter, flow meter and other instruments can be connected in an RS485 network if addressing and communication parameters are configured correctly.Applications of Modbus 485 pH Meter OnlineRO PlantsRO plants use online pH meters for feed water, dosing correction, treated water and reject water monitoring. RS485 Modbus communication helps transmit pH readings to PLC or HMI panels.ETP PlantsEffluent-treatment plants use pH monitoring for neutralisation, acid dosing, alkali dosing and treated-water discharge checking. A Modbus 485 pH Meter Online is useful for automation and report logging.STP PlantsSewage-treatment plants use pH meters for inlet, process and treated-water monitoring. Modbus output allows the pH value to be shown on a central SCADA screen or local HMI.Chemical Dosing SystemspH meters are used in acid and alkali dosing systems. With RS485 output, the pH value can be used by PLC programs for dosing control, alarm logic and data recording.Cooling TowersCooling-tower systems use pH monitoring to control water-treatment chemistry, reduce scaling, reduce corrosion and improve plant operation.Boiler Water TreatmentBoiler-water systems use pH measurement to support chemical treatment and water-quality monitoring. Online pH data can be logged for maintenance and quality records.Pharmaceutical UtilitiesPharmaceutical plants use pH meters in utility water systems, RO plants, DM plants and process-support applications where documentation and digital monitoring are important.Food and Beverage PlantsFood and beverage industries use online pH measurement for treated water, process water, cleaning water and effluent-treatment applications.Electroplating and Surface TreatmentElectroplating units use pH meters for process baths, rinse water, pretreatment and effluent neutralisation. Modbus communication helps integrate pH monitoring with plant automation.Industrial Automation PanelsPanel manufacturers and system integrators use RS485 pH meters in PLC panels, HMI panels, SCADA panels and remote monitoring systems.Why Choose Our Modbus 485 pH Meter Online?Continuous online pH measurementRS485 Modbus RTU communicationSuitable for PLC, HMI, SCADA and data logger0.00 to 14.00 pH measurement range0.01 pH resolutionTwo-point calibration with 4.00 and 7.00 pH buffersPanel-mounted industrial designCompatible with pH electrode / pH sensorSuitable for RO, ETP, STP and process waterUseful for automation and remote monitoringHow Modbus 485 pH Meter Online WorksThe pH sensor is installed in the process liquid, tank, pipeline, sample line or flow cell.The sensor generates a signal according to the pH value of the liquid.The online pH meter reads the sensor signal.The instrument displays the pH value on the digital display.The RS485 Modbus RTU output sends the pH value to PLC, HMI, SCADA or data logger.The automation system can display, log, alarm or use the pH value in control logic.Typical RS485 Modbus IntegrationThe Modbus 485 pH Meter Online can be connected in an RS485 network with a master device. The master device reads the pH value from the meter using Modbus RTU communication. Communication parameters such as slave ID, baud rate, parity and register address must be configured according to the instrument and system requirement.PLC: Reads pH value for control and alarm logic.HMI: Displays pH value on operator screen.SCADA: Logs pH value and shows trend graphs.Data Logger: Stores pH reading for quality records.IoT Gateway: Sends pH data to cloud dashboard or remote monitoring system.Difference Between Modbus pH Meter and Analog pH MeterAn analog pH meter normally provides output such as 4-20 mA or 0-10 VDC. These outputs are useful for analog PLC input cards, recorders and simple monitoring systems.A Modbus 485 pH Meter Online sends pH data digitally through RS485 Modbus RTU. Digital communication is useful when multiple devices are connected to one communication line, when exact digital reading is required, or when data logging and SCADA monitoring are needed.Difference Between Online pH Meter and pH ControllerAn online pH meter measures and displays pH value continuously. A pH controller measures pH and also provides control output, usually relay output, for acid dosing, alkali dosing, alarm or process interlock.If only measurement and communication are required, Modbus 485 pH Meter Online is suitable. If automatic dosing control is required, a pH controller with relay output may be required.Compatible pH Sensors and ElectrodesThe pH meter must be used with a compatible pH electrode. Correct pH sensor selection depends on liquid type, temperature, pressure, chemical compatibility, cable length and mounting requirement.pH Sensor and Electrode – Replacement electrode for pH meters and pH controllers.Table-Top Laboratory pH Meter – For laboratory sample testing.Digital pH Meter Online – For continuous pH indication.pH Meter with 4-20 mA Output – For PLC and recorder systems.pH Meter with 0-10 VDC Output – For analog monitoring applications.RS485 Modbus RTU pH Controller – For PLC, HMI and SCADA integration.View more instruments in our pH Meter product category and pH Controller product category.Installation InstructionsInstall the pH meter in a clean and protected control panel.Install the pH sensor in a tank, flow cell, pipeline or sample chamber according to application.Keep the pH sensor bulb continuously wet during operation.Avoid air bubbles around the pH sensor glass bulb.Keep pH sensor cable away from motor, VFD, contactor and power wiring.Use shielded cable where electrical noise is present.Connect RS485 A and B terminals correctly to PLC, HMI or SCADA system.Use proper RS485 network wiring practice for long-distance communication.Set slave ID, baud rate and communication parameters correctly.Calibrate the pH meter before process use.Calibration Procedure for Modbus 485 pH Meter OnlinePrepare the pH SensorConnect the pH electrode to the pH meter.Switch ON the instrument and allow the display to stabilise.Remove the pH electrode from storage solution.Rinse the glass bulb with clean or distilled water.Do not rub the pH glass bulb.Calibrate at 7.00 pHTake fresh 7.00 pH buffer solution in a clean beaker.Dip the pH sensor into the buffer solution.Wait until the reading becomes stable.Adjust the 7 pH calibration setting.Set the display to exactly 7.00 pH.Calibrate at 4.00 pHRemove the sensor from 7.00 pH buffer.Rinse the sensor with clean water.Dip the sensor into fresh 4.00 pH buffer solution.Wait until the reading becomes stable.Adjust the 4 pH or slope setting.Set the display to exactly 4.00 pH.Verify and Connect CommunicationRecheck the reading in 7.00 pH buffer.Verify process reading after installation.Check RS485 Modbus value on PLC, HMI or SCADA screen.Confirm that displayed pH and Modbus pH value match correctly.RS485 Wiring PrecautionsUse twisted-pair cable for RS485 communication.Connect A and B communication terminals correctly.Do not run RS485 cable with high-voltage power wiring.Use proper earthing and shielding practices.Avoid star wiring for long RS485 networks.Use termination resistor where required by network length and design.Set unique slave ID for each instrument on the same network.Keep baud rate and parity same in all connected devices.pH Sensor Storage and MaintenanceKeep the pH electrode bulb wet when not in use.Store the pH sensor in proper storage solution.Do not keep the pH electrode dry for long periods.Do not store pH electrode in distilled water or DM water for long-term storage.Clean the sensor according to process contamination.Calibrate the meter regularly with fresh buffer solution.Replace the sensor if reading remains unstable after cleaning and calibration.Common Problems and TroubleshootingpH reading unstable: Check sensor condition, cable shielding, grounding and process flow.Calibration not possible: Clean or replace the pH electrode and use fresh buffer solution.Wrong pH value: Check calibration, sensor aging and buffer accuracy.No Modbus communication: Check RS485 A/B wiring, slave ID, baud rate and parity.PLC value not matching display: Check register scaling and data format in PLC program.Communication intermittent: Check cable length, shielding, termination and electrical noise.Industries Using Modbus 485 pH Meter OnlineRO plant manufacturersETP and STP contractorsWater-treatment companiesPLC and SCADA system integratorsControl-panel manufacturersPharmaceutical industriesFood and beverage industriesChemical industriesElectroplating and surface-treatment unitsTextile and dyeing industriesCooling-tower water-treatment companiesBoiler-water treatment companies7 Powerful Benefits of Modbus 485 pH Meter OnlineContinuous online pH measurementRS485 Modbus RTU communicationSuitable for PLC, HMI, SCADA and data loggingDigital pH reading with 0.01 pH resolutionUseful for RO, ETP, STP and process-water systemsEasy integration in automation panelsSuitable for remote monitoring and industrial reportingFAQs About Modbus 485 pH Meter OnlineWhat is Modbus 485 pH Meter Online?It is an online pH meter with RS485 Modbus RTU communication for continuous pH measurement and digital data transfer to PLC, HMI or SCADA.What is the pH measurement range?The standard measurement range is 0.00 to 14.00 pH.What is the resolution?The common resolution is 0.01 pH.Can it connect to PLC?Yes, the pH value can be read by PLC through RS485 Modbus RTU communication.Can it connect to HMI?Yes, the pH value can be displayed on HMI through Modbus RTU communication if communication parameters and registers are configured correctly.Can it be used in SCADA?Yes, it is suitable for SCADA monitoring, trend logging and report generation.Can it be used in RO plants?Yes, it is suitable for RO feed water, treated water, dosing correction and reject-water monitoring.Can it be used in ETP and STP plants?Yes, it is widely used in ETP and STP plants for neutralisation, treatment monitoring and discharge checking.Does it require calibration?Yes, calibration is required using fresh 7.00 pH and 4.00 pH buffer solutions.What is the difference between RS485 pH meter and 4-20 mA pH meter?RS485 pH meter sends digital Modbus data, while 4-20 mA pH meter sends analog current output. Selection depends on PLC, SCADA and automation requirement.Can multiple Modbus meters be connected together?Yes, multiple RS485 Modbus instruments can be connected on one network if each device has a unique slave ID and proper communication settings.Do you supply throughout India?Yes, UMA Industries supplies Modbus 485 pH Meter Online, pH controllers, pH sensors and industrial water-quality instruments throughout India.External Technical ReferencesModbus Technical ReferencepH Meter Technical ReferenceUS EPA – Water Quality CriteriaBusiness Partner and Dealer OpportunityDealers, distributors, RO plant manufacturers, ETP/STP contractors, control-panel manufacturers, PLC/SCADA integrators, water-treatment companies and industrial-instrument suppliers may contact UMA Industries for business cooperation involving Modbus pH meters, online pH meters, pH controllers, pH sensors and water-quality instruments.Our Other Websitesphmeters.in – pH meters, pH controllers, electrodes and industrial instruments.salt-spray-chamber.in – Salt spray chambers and corrosion-test equipment.water-tank.in – Water-storage and chemical-storage tanks.YouTube Channel – Product demonstrations and technical updates.MCS Facebook Page – Product news and updates.Robotech Learning Channel – Technical tutorials and product videos.Buy Modbus 485 pH Meter OnlineContact UMA Industries for model selection, RS485 communication requirement, pH sensor selection, PLC/SCADA integration and technical support. We supply Modbus 485 pH Meter Online, online pH meters, pH controllers, pH electrodes and industrial water-quality instruments throughout India.Need help choosing? Call/WhatsApp us for industrial pH/ORP solutions.Industrial pH ControllerOnline pH MeterChemical Dosing Pump
