Cable Set for Safety Light Curtain

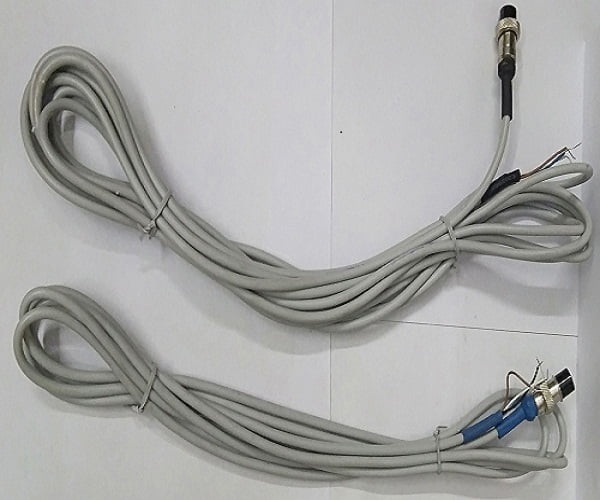

Cable Set for Safety Light CurtainHence The Diamention of Safety Light Curtain, Cable Set for Safety Light Curtain are given HereThis cable set is usefull for safety light curtain with specificationsTwo wires for Input DC supply for Sensor 12-24 volts DC. Hence wire colour code is Red or Brown for Dc Volt and Blue for -Dc Volt. While Black wire is output for No or Nc operation Circuit. But White wire is communication. It must be connected to each other,Cable Set for Safety Light CurtainAccessories Required Specifications:To operate / working of Safety Light Curtain few more additional product may required for installation;  we given a brief with product catalog link hereCable Set For Safety Light CurtainTwo Cables are Required for InstallationEmitter cable length 5 Meter Reciever Cable Length 3 Meterwith suitable Connectors at one EndOther Models in This Category:Safety Light Curtain SLC-0630Safety Light Curtain SLC-1030Safety Light Curtain SLC-1230Safety Light Curtain SLC-1630Safety Light Curtain SLC-1830Safety Light Curtain SLC-2430Safety Light Curtain SLC-3030As per Demand special ordersOthers Technical Specifications: Safety Light CurtainHence Sensor Power Supply  : 12-24 volts DC While output  ; PNP or NPN/ NC But Output indications ; Through corresponding LEDs Also Response time On to off : 10-15 msec. Hence No of beams : 8,10,12,16, 18, 24, 30, or as required While Beam bypass Provided in Controller Also Adjustable Range Up to 3 meters Hence Higher Sensing range up to 5,10,15 meter. available on demand While Standard Cable length 5 meters for the emitter, 3 meters for the receiver Also Operating Temperature Up to 55 Degrees centigrade Protections Output short circuit protected Suitable for Machines with quick emergency stopFEATURES:-Cable Set for Safety Light Curtain Hence An ISO 9001:2015 Certified Company, 2 Outputs model also available,Hence Safety Light curtains must comply with IEC-61496 parts 1 & 2. While as ANSI/UL 61496 parts 1 & 2. Light curtains’ “TYPE” their Safety Performance Level. Hence it must be appropriately selected. Light curtains’ optional functions. Because as listed in Annex “A” of IEC-61496 part 1, must comply with Annex “A” requirements. working Principle: Hence A safety light curtain consists of two parts: Transmitter Receiver. While The transmitter contains multiple Infrared LEDs that send pulses of infrared light to the receiver. When an interrupt occurred between the transmitter and receiver then we receive an output that used to stop working or raise alarm. Our Other Websites:www.phmeters.in : Our all products availablewww.Salt-Spray-Chamber.in : salt Spray Chamber and Safety Light Curtainswww.Water-Tank.in : Over Head Tank and Chemical TankFollow us on You Tube ChannelLike MCS Facebook Page for recent offers & Updates! Robotech Learning Chennel:- contains video tutorials for products manufactured by Machine Control SystemsNeed help choosing? Call/WhatsApp us for industrial pH/ORP solutions.Industrial pH ControllerOnline pH MeterChemical Dosing Pump
