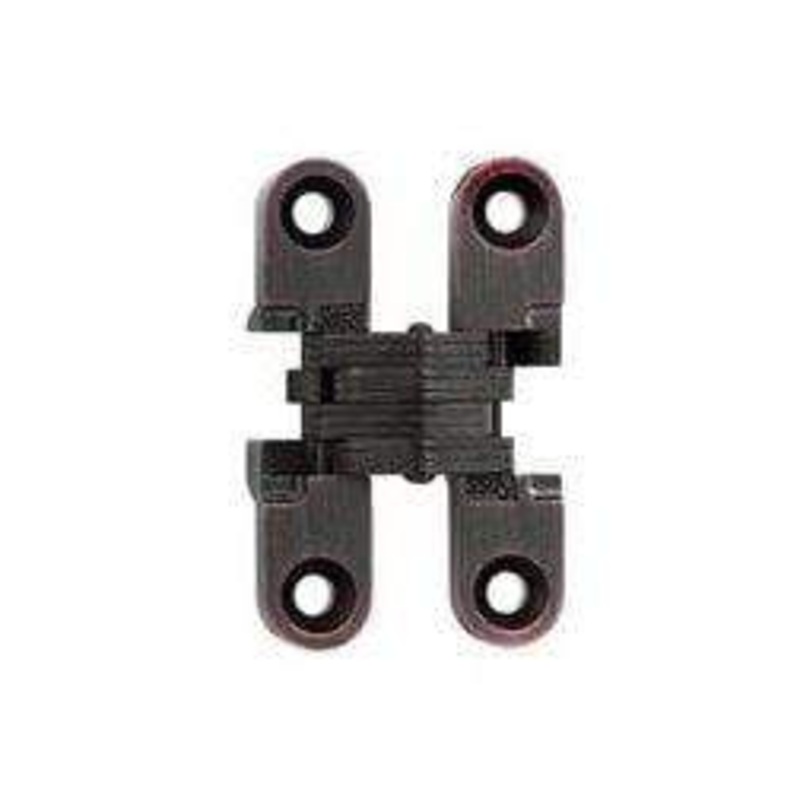

Concealed Cabinet Hinges – 3/8 Inch X 11/16 Inch – For Min Thick Door 1/2 Inch – Multiple Finishes Available – 2 Pack

Details Our High Quality SOSS Concealed Cabinet Hinge model #101 is for use in wood or metal applications. These hinges are used where compact size, smooth operation, and flush fit are necessary SOSS Concealed Hinges open a full 180 and are a single action hinge. Multiple Finishes Available! | Sold as2 Pack Click to see Official Soss Hinges Video Available Finishes: Oil Rubbed Bronze, Satin Nickel, Black E-Coat, Satin Chrome, Satin Brass Additional Information Application Cabinet, Metal, Wood Min. Material Thickness 1/2″ Fire Rating No Power Transfer No Spring Closer No Counter Bored Screw Holes No Screws Included Wood Dimensions A 3/8 (9.53mm) B 19/64″ (7.54mm) C 1-11/16″ (42.86mm) D 7/64″ (2.78mm) E 3/32″ (2.38mm) F 7/8″ (22.23mm) G 1/32″ (0.79mm) H 29/64″ (11.51mm) I 7/32″ (5.56mm) Min. Matl. Thickness 1/2″ (12.70mm) Wood Screw Sizes #5×3/4″ (3.5x19mm) Soft Wood Pilot Hole No. 53 Hard Wood Pilot Hole No. 47 Machine Screw Sizes #4-40×1/2″ Hinge Weight .07 lb. Don’t forget to order a Router Template for this hinge to make sure it is routed perfectly for installation. Reviews There are no reviews yet. Be the first to review “Concealed Cabinet Hinges – 3/8 Inch X 11/16 Inch – For Min Thick Door 1/2 Inch – Multiple Finishes Available – 2 Pack” Cancel replyYour email address will not be published. Required fields are marked *Your rating * Rate… Perfect Good Average Not that bad Very poor Your review *Name * Email * Save my name, email, and website in this browser for the next time I comment.
