Concealed Cabinet Hinges – 3/8 Inch X 1 Inch – For Min Thick Door 1/2 Inch – Multiple Finishes Available – 2 Pack

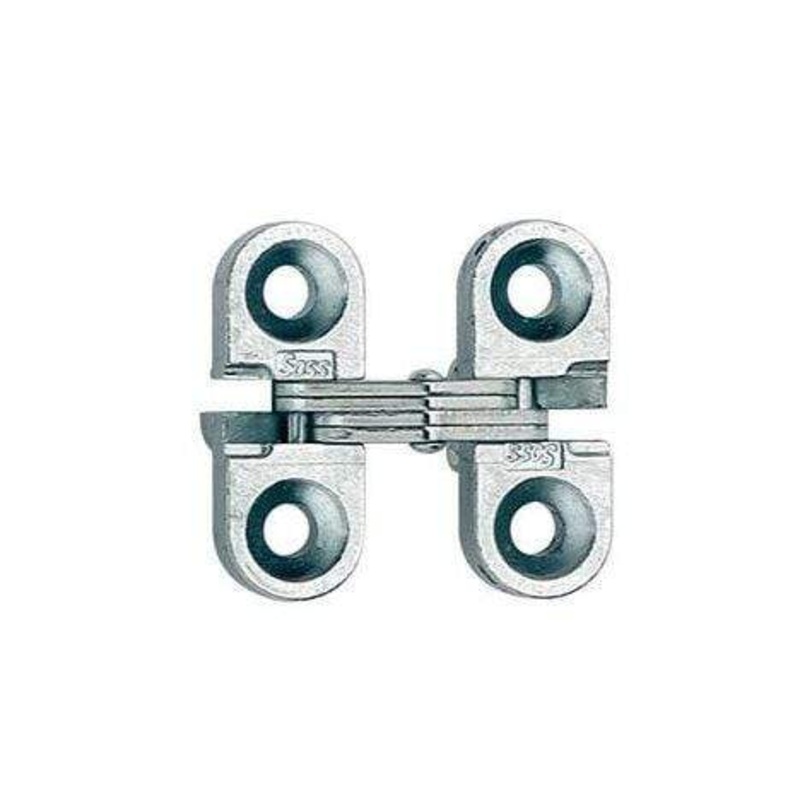

Concealed Hinge Details Our High Quality SOSS Concealed Cabinet Hinge model #100 is for use in wood or metal applications. These hinges are used where compact size, smooth operation, and flush fit are necessary SOSS Concealed Hinges open a full 180 and are a single action hinge. Sold as2 Pack Click to see Official Soss Hinges Video Available Finishes: Satin Chrome, Satin Brass Additional Information Application Cabinet, Metal, Wood Min. Material Thickness 1/2″ Fire Rating No Power Transfer No Spring Closer No Counter Bored Screw Holes No Screws Included Wood Packaging No Packages Per Container No Price Per No Dimensions A 3/8 (9.53mm) B 9/32″ (7.14mm) C 1″ (25.40mm) D 3/32″ (2.38mm) E 3/32″ (2.38mm) F 3/8″ (9.53mm) G 1/32″ (0.79mm) H 15/32″ (11.91mm) I 15/64″ (5.96mm) Min. Matl. Thickness 1/2″ (12.70mm) Wood Screw Sizes #5×3/4″ (3.5x19mm) Soft Wood Pilot Hole No. 53 Hard Wood Pilot Hole No. 47 Machine Screw Sizes #4-40×1/2″ Hinge Weight .04 lb. Don’t forget to order a Router Template for this hinge to make sure it is routed perfectly for installation. Reviews There are no reviews yet. Be the first to review “Concealed Cabinet Hinges – 3/8 Inch X 1 Inch – For Min Thick Door 1/2 Inch – Multiple Finishes Available – 2 Pack” Cancel replyYour email address will not be published. Required fields are marked *Your rating * Rate… Perfect Good Average Not that bad Very poor Your review *Name * Email * Save my name, email, and website in this browser for the next time I comment.
