Concealed Cabinet Hinges – 1/2 Inch X 2-3/8 Inch – For Min Thick Door 3/4 Inch – Multiple Finishes Available – 2 Pack

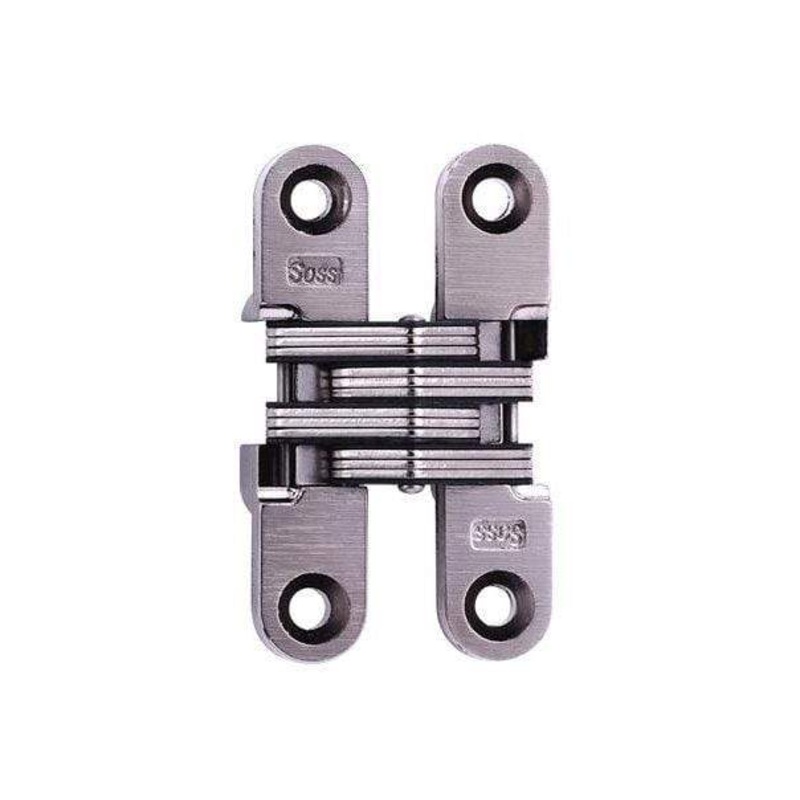

Details Our High Quality SOSS Concealed Cabinet Hinge model #204 is for use in metal or wood applications. This cabinet style hinge will provide superior appearance and durability. These hinges are used where compact size, smooth operation, and flush fit are necessary SOSS Concealed Hinges open a full 180 and are a single action hinge. Multiple Finishes Available! Sold as2 Pack Click to see Official Soss Hinges VideoHow to install Concealed Hinges Available Finishes: Black E-Coat, Satin Brass, Satin Chrome, Satin Nickel Additional Information Application Cabinet, Metal, Wood Min. Material Thickness 3/4″ Fire Rating No Power Transfer No Spring Closer No Counter Bored Screw Holes No Screws Included Wood Dimensions A 1/2″ (12.70mm) B 23/64″ (9.13mm) C 2-3/8″ (60.33mm) D 7/64″ (2.78mm) E 1/8″ (3.18mm) F 1-1/4″ (31.75mm) G 1/32″ (0.79mm) H 23/32″ (18.26mm) I 1/4″ (6.35mm) Min. Matl. Thickness 3/4″ (19.05mm) Wood Screw Sizes #7×1-1/4″ (3.9x32mm) Soft Wood Pilot Hole No. 51 Hard Wood Pilot Hole No. 39 Machine Screw Sizes #8-32×5/8″ Hinge Weight .20 lb. Don’t forget to order a Router Template for this hinge to make sure it is routed perfectly for installation. Reviews There are no reviews yet. Be the first to review “Concealed Cabinet Hinges – 1/2 Inch X 2-3/8 Inch – For Min Thick Door 3/4 Inch – Multiple Finishes Available – 2 Pack” Cancel replyYour email address will not be published. Required fields are marked *Your rating * Rate… Perfect Good Average Not that bad Very poor Your review *Name * Email * Save my name, email, and website in this browser for the next time I comment.
