Concealed Cabinet Hinges – 1/2 Inch X 1-1/2 Inch – For Min Thick Door 3/4 Inch – Multiple Finishes Available – 2 Pack

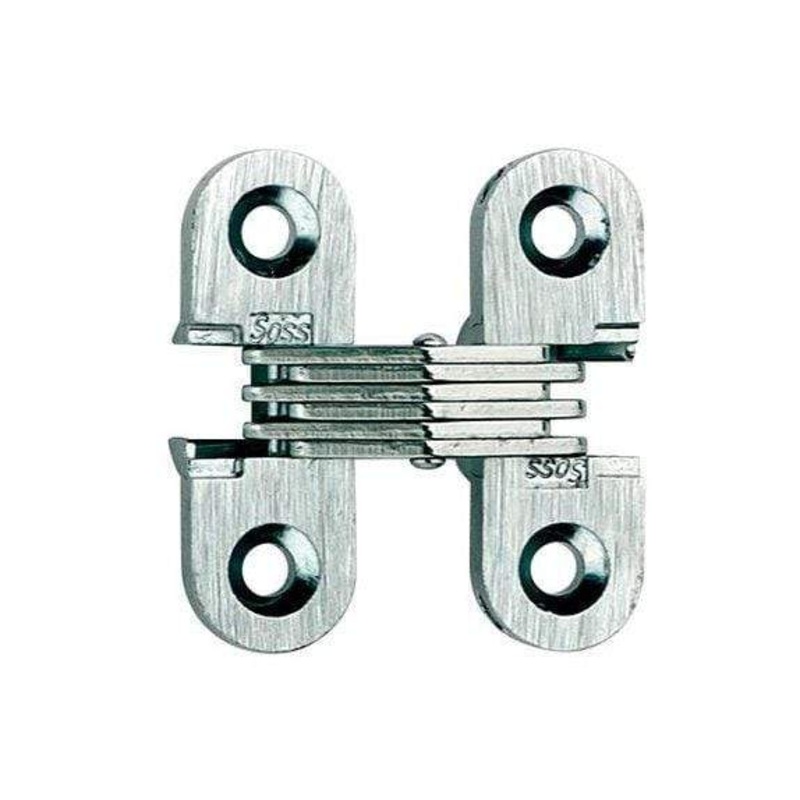

Details Our High Quality SOSS Concealed Cabinet Hinge model #103 is for use in wood or metal applications. These hinges are used where compact size, smooth operation, and flush fit are necessary SOSS Concealed Hinges open a full 180 and are a single action hinge. Multiple Finishes Available! Sold as 2 Pack Click to see Official Soss Hinges Video Available Finishes:Black E-Coat, Satin Chrome, Satin Brass Additional Information Application Cabinet, Metal, Wood Min. Material Thickness 3/4″ Fire Rating No Power Transfer No Spring Closer No Counter Bored Screw Holes No Screws Included Wood Dimensions A 1/2″ (12.70mm) B 3/8″ (9.53mm) C 1-1/2″ (38.10mm) D 1/8″ (3.18mm) E 1/8″ (3.18mm) F 11/16″ (17.46mm) G 1/32″ (0.79mm) H 19/32″ (15.08mm) I 7/32″ (5.56mm) Min. Matl. Thickness 3/4″ (19.05mm) Wood Screw Sizes #6×1″ (3.5x25mm) Soft Wood Pilot Hole No. 52 Hard Wood Pilot Hole No. 44 Machine Screw Sizes #6-40×1/2″ Hinge Weight .09 lb. Reviews There are no reviews yet. Be the first to review “Concealed Cabinet Hinges – 1/2 Inch X 1-1/2 Inch – For Min Thick Door 3/4 Inch – Multiple Finishes Available – 2 Pack” Cancel replyYour email address will not be published. Required fields are marked *Your rating * Rate… Perfect Good Average Not that bad Very poor Your review *Name * Email * Save my name, email, and website in this browser for the next time I comment.
