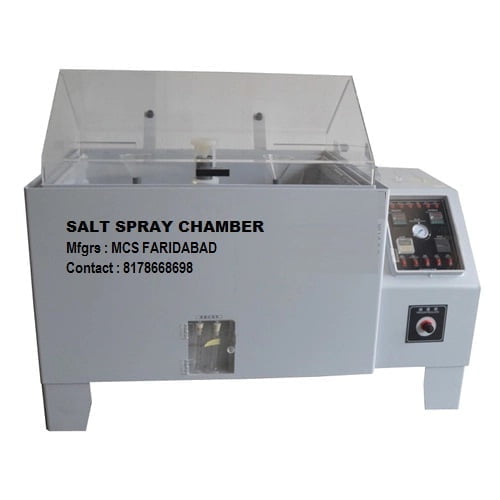

Salt Spray Chamber SST-216ASalt Spray Chamber SST-216A – 216 Liter Corrosion Test Chamber (ASTM B117 / ISO 9227) The Salt Spray Chamber SST-216A is a high-performance corrosion testing chamber used to evaluate rust resistance and coating durability under controlled salt fog conditions. It supports standard test methods like ASTM B117, ISO 9227 and JIS Z 2371, making it suitable for industrial and laboratory use. This chamber is widely used for testing painted surfaces, electroplated components, zinc coatings, anodized parts, automotive components, and metal hardware to ensure long-term reliability.Capacity & Dimensions – SST-216A (216 Liter)Chamber Capacity: 216 Liter (Laboratory model as per ASTM B117 / ISO 9227)Chamber Size (L × W × H): 600 × 600 × 600 mmOverall Machine Size (Approx.): 950 × 700 × 900 mmKey Features – Salt Spray Chamber SST-216AMain chamber: PP, 8 mm sheets (corrosion resistant)Top cover: 5 mm acrylic transparentMaterial hangers: 4–6 hanging rods (depending on max job size)Main water tank separated from spray chamber (approx. 20 Liters)Low saline level indication on front panelAuto-fill and level-maintaining system for reservoir saline tank (sensors)Chamber waste water auto drainage control (no manual drain)Periodic compressed air circulation in saline tank for dissolving residuesFully automatic temperature controller (double display) for heating waterOver-temperature warning indicator on front panelSeparate indicator for chamber temperature and humidityShock-free, anti-corrosion, unbreakable heaters (no glass heater)Centralized fogging system as per ISO 9227 and ASTM B117Standardized fog collection system as per ASTM B117Automatic fog operating system controlled by process switch ON/OFFHour meter: 999 hours 59 minutes (model dependent)Digital pH meter with sensor for monitoring saline solution pHDigital humidity meter with sensor to monitor chamber humidityProcess complete buzzer alarm with indicatorPower Supply: 220 VACWarranty: 1 YearStandards – ASTM B117 & ISO 9227 (Salt Spray / Salt Fog Test)1) Scope This apparatus is suitable for salt spray (fog) testing of ferrous and non-ferrous metals and also used to test organic and inorganic coatings where such tests form the basis for material or product specifications.2) Apparatus A salt spray test system consists of a fog chamber, salt solution reservoir, air supply system, atomizing nozzle(s), specimen supports, heaters for heating the salt solution, and necessary control and monitoring systems.3) Temperature Control The exposure zone of the salt spray chamber is maintained at 35 ± 2 °C. The controller maintains the temperature within a specified operating range for repeatable results.4) pH Control As per ASTM B117, when atomized at 35 °C the collected solution should be within the pH range 6.5 to 7.2. A pH meter is used to monitor this value.5) Air Supply Air supply must be free from oil and dust. Pressure is maintained so that uniform salt fog occurs. Typical pressure: 1.0 kg/cm² ± 0.2.6) Atomization and Quantity of Fog As per ASTM B117, for every 80 cm² (4-inch funnel) of horizontal collecting area, collected solution should be 1.0 to 2.0 mL per hour averaged over at least 16 hours. Standards reference (dofollow): ASTM B117Applications – Salt Spray Chamber SST-216AMetal components and fastenersAutomobile parts and assembliesElectroplated and galvanized coatingsPowder coated and painted samplesMarine hardware and industrial fittingsAerospace and defence componentsStainless steel and alloy surfacesWhy Salt Spray Testing is Important Salt spray testing helps determine how well materials and coatings resist corrosion in harsh environments. It is a widely used accelerated corrosion test to verify coating quality where rust resistance is critical. Using the SST-216A Salt Spray Chamber, manufacturers can validate coating strength, compare protective layers, and improve product reliability before shipment.What’s Included (Package)Salt Spray Chamber SST-216ASample holding racksFog collection unitStandard accessories setUser manualWhy Buy from UMA Industries / Machine Control SystemsTrusted supplier of lab & industrial testing equipment in IndiaCompetitive pricing with after-sales supportQuality-tested chamber performanceDispatch and delivery across IndiaTechnical assistance for setup and operationFAQ – Salt Spray Chamber SST-216AWhich standards does Salt Spray Chamber SST-216A support?It supports ASTM B117, ISO 9227, and JIS Z 2371 for salt spray corrosion testing.What products can be tested in a salt spray chamber?Painted metals, plated parts, fasteners, automotive components, coatings, alloys, and industrial hardware.What is the purpose of salt spray testing?It checks corrosion resistance and verifies coating durability under accelerated salt fog conditions.Is this chamber suitable for quality control labs?Yes, SST-216A is suitable for QC, R&D and production validation in industrial environments.Request Price / Quotation For price, quotation, datasheet or custom requirements, contact UMA Industries / Machine Control Systems.Call / WhatsApp: 91-8178668698Other Models in CategorySalt Spray Test Chamber 162A – Laboratory ModelSalt Spray Test Chamber 162B – ASTM B117Salt Spray Test Chamber 216A – StandardSalt Spray Test Chamber 216B – ASTM B117Salt Spray Test Chamber 240ASalt Spray Test Chamber 1KB – Graphical DisplayCustom designed as per any other size or specificationpH Meter Like MCS Facebook Page for recent offers & updates Need help choosing? Call/WhatsApp us for industrial pH/ORP solutions.Industrial pH ControllerOnline pH MeterChemical Dosing Pump
