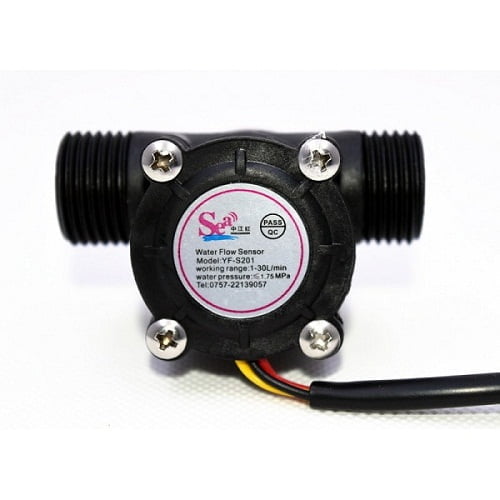

Flow Sensor 1/2 InchWhile Accurate flow measurement is an essential step both in the terms of qualitative and economic points of view. Hence Flow meters have proven excellent devices for measuring water flow. While now it is very easy to build a water management system using the renowned water flow sensor. Hence YF-S201.,Flow Sensor 1/2 inchWorking of Flow Sensor 1/2 InchYF-S201 1/2 inch Water Flow Sensor sits in line with the waterline and contains a pinwheel sensor to measure how much water has moved through it. There is an integrated magnetic Hall-Effect sensor that outputs an electrical pulse with every revolution. Thus YF-S201 1/2 inch water flow sensor has only three wires and it can be easily interfaced between any micro controller and Arduino board.Principle :When water through the flow rotor assembly. Hence the magnetic rotor will rotate and Speed of rotor will change as the flow change. Hall current sensor Read the pulses and provide output corresponding pulse signal and feedback sent to the controller. then the controller will measure the flow and display the value in term of flow speed and total volume passed through the sensor. these sensors may be used for water heaters, credit card machines, water vending machines, flow measurement devices.main features are : Flow Sensor 1/2 inchLight-weight, small size, easy to install. Inlaid with stainless steel impeller shaft, durable wearable. The seal ring with the upper and lower force structure never leaks. Non-violent shock, and chemical erosion. Non-throwing or hitting. Mounted vertically, should not exceed 5 degrees inclination. The temperature of the medium should not exceed 120 ℃.Technical Specifications :Sensor Type: Hall effect Working Voltage: 5 to 18V DC (min tested working voltage 4.5V) Max current draw: 15mA Output Type: 5V TTL Working Flow Rate: 1 to 30 Liters/Minute Temperature range: -25 to 80℃ Working Humidity Range: 35%-80% RH Accuracy: ±10% Maximum water pressure: 2.0 MPa Output duty cycle: 50% -10% rise time: 0.04us Output fall time: 0.18us Frequency (Hz) = 7.5 * Flow rate (L/min) Pulses per Liter: 450 we should connect the sensor with a digital flow controller as given below: Red: Positive( ) Yellow: Signal output. Black: Negative(-)OUR Other WebsitePH MeterSalt Spray ChamberWater TanksYou Tube ChannelLike MCS Facebook Page for recent offers & Updates! pH Meter Like MCS Facebook Page for recent offers & Updates! Flow SensorNeed help choosing? Call/WhatsApp us for industrial pH/ORP solutions.Industrial pH ControllerOnline pH MeterChemical Dosing Pump
