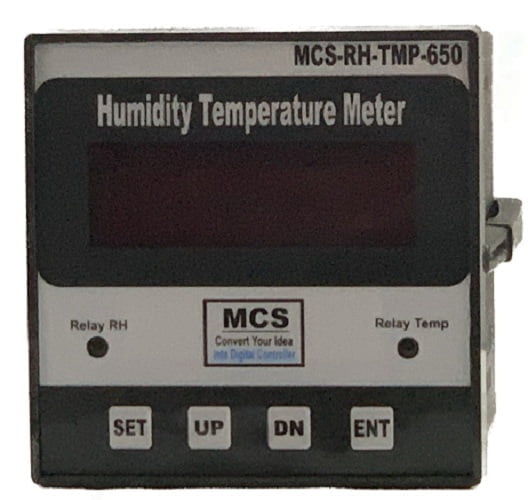

Digital Humidity Temperature Meter

Digital Humidity Temperature MeterHeavy Duty Industrial use, warranty 1 year. Digital Humidity Temperature MeterTechnical Specification :Range : 00 to 99 % RH ; 0 to 100 degree CResolution : 1 %Tolerence : /- 2% , 2 DegreeOutput : 4 Relay potential free Output with DisplayCalibration : Back side Screw providedInput : Humidity Sensor , J-Type Thermocouple SensorDisplay : Seven Segment Bright LED DisplayOperating Voltage : 220 VacSize : 96 * 96 * 110Body : PP/ABSProcess Setting : Digital Humidity Temperature MeterSet the Range of Temperature in the Controller; Higher Value and Lower Value. Hence The Sensor 1 will ON and OFF the Heater between The Range, While Relay 2 and Realy 3 to be Connected with Humidifier and Fan to maintain % RH.Specific HumidityHence Specific humidity is the quantity or mass of water vapor in a unit mass of moist air; usually it expressed as grams of vapor per kilogram of air. While It indicates the actual amount of water vapor present per kg of mass of air. Hence For instance- if 1 kg air holds 10 grams of water vapor; the specificRelative Humidity | Digital Humidity Temperature MeterWhile Relative humidity is the ratio of the absolute humidity at a given time to the maximum moisture-holding capacity; Hence Relative Humidity depends on current air temperature.• For example, let the maximum vapor holding capacity of a certain volume of air be 100 kilograms of water. Suppose this volume of air is actually holding only 40 kilograms of water. then The relative humidity would be 40 kilograms out of 100 kilograms, or 40% because only 40% of the maximum vapor pressure or weight holding capacity is being used. Mixing Ratio • The mixing ratio is defined as the ratio of the mass of water vapor in an air sample or parcel to the mass of dry air for the same parcel.The mixing ratio is approximately equal to Specific humidity.• As temperature decreases, the amount of water vapor needed to reach saturation also decreases.Important Process and TermsWhile The molecules move and vibrate so quickly that they escape into the atmosphere as molecules of water vapor. Hence Evaporation is a very important part of the water cycle. Digital Humidity Temperature Meter While It happens when ice or snow directly becomes vapor and water vapor directly becomes ice or snow.OUR Other WebsitePH MeterSalt Spray ChamberWater TanksYou Tube ChannelLike MCS Facebook Page for recent offers & Updates!  pH Meter Like MCS Facebook Page for recent offers & Updates! Need help choosing? Call/WhatsApp us for industrial pH/ORP solutions.Industrial pH ControllerOnline pH MeterChemical Dosing Pump
